Expansion Joints

Type 54 w/ G82 Sleeve & Baffle

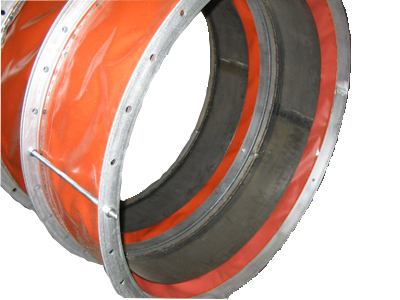

Type 54 Expansion Joint with G82 Sleeve & Baffle

MATERIALS
  • Mild steel or 304 stainless steel angle
  • 2-Ply silicone coated fiberglass sleeve
  • Stainless steel baffle
MAXIMUM OPERATING TEMPERATURE
  •  500°F (260°C)
  • -65°F (-54°C)
FEATURES
  • Made to order as per customer specs
  • Resistant to deterioration from ozone, corona, weathering and radiation
  • Baffle adds protection from abrasive particulates
  • Non-porous
  • Highly flexible
  • Accommodates for thermal movement
  • Accommodates for vibration
  • Made in the USA with US steel
INDUSTRIES
  • Pollution control
  • Turbine and Engine
  • Paper and Pulp
  • Energy production
  • OEM
APPLICATIONS
  • Accommodating for thermal expansion/contraction
  • Accommodating for misalignments
  • Noise reduction
  • Commonly used in exhaust stacks and hot air ducts
